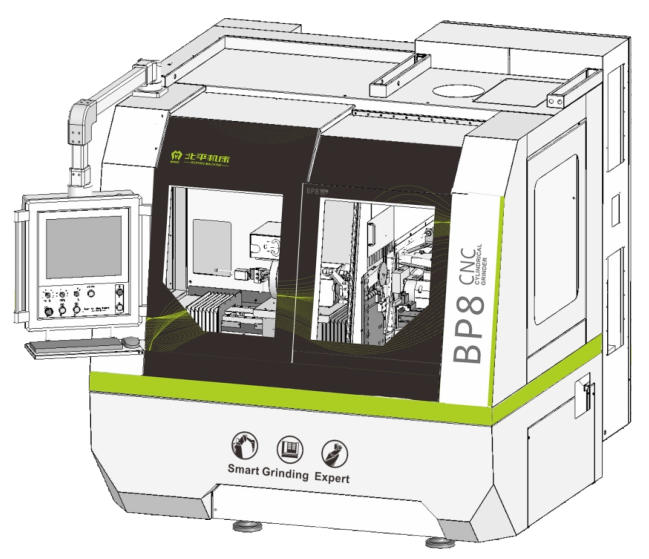

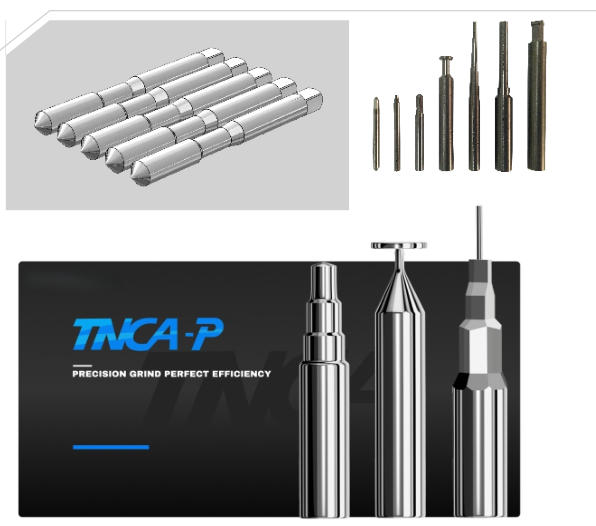

BP8 grinding machine is specialized in carbide blank grinding with diameter under 25mm, as perfect machine for punch, complicated shape molds and big Length-diameter ratio workpieces.Multi-functional robot and optional on-line measuring device guarantee the machine running from small batch production to mass production. Professional grinding wheel balancing technology guarantees the workpiece concentricity. CNC controlled five axis linkage is capable of grinding flat surface, multi-angles,eccentric and noncylindrical cam surface. BP8 CNC software can realize synchronized grinding of roughing and finishing with high speed and high precision. Optional linear scale enhances runin accuracy, guarantees high cone shape, cylindrical accuracy and surface finishing.
1, New 20Kw strong grinding function with BP8, more flexible for small batch workpieces grinding with unbelievable results.
2, Innovative roughing wheel angle setup device and technology easily realize grinding balance force smooth change.
3,High precision ball screws bring high stability and efficiency to the loading device.
4, Optional linear motor with Heidenhain scale enhances machine accuracy sharply.
5,Optional natural granite provides excellent vibration absorption performance and temperature stability.
6, Innovative front and rare position device;
7, Synchronized roughing and finishing high speed grinding process enables 3-5 times efficiency as conventional grinding process.
8,3D OD shaping software optional with smart, clear and programmable interface, for unlimited grinding profile possibility.
9, CNC C axis capable for faces, angles, eccentric and non cylindrical cam surface grinding.10, Up-down shank support system available for workpiece with head bigger than shank.
